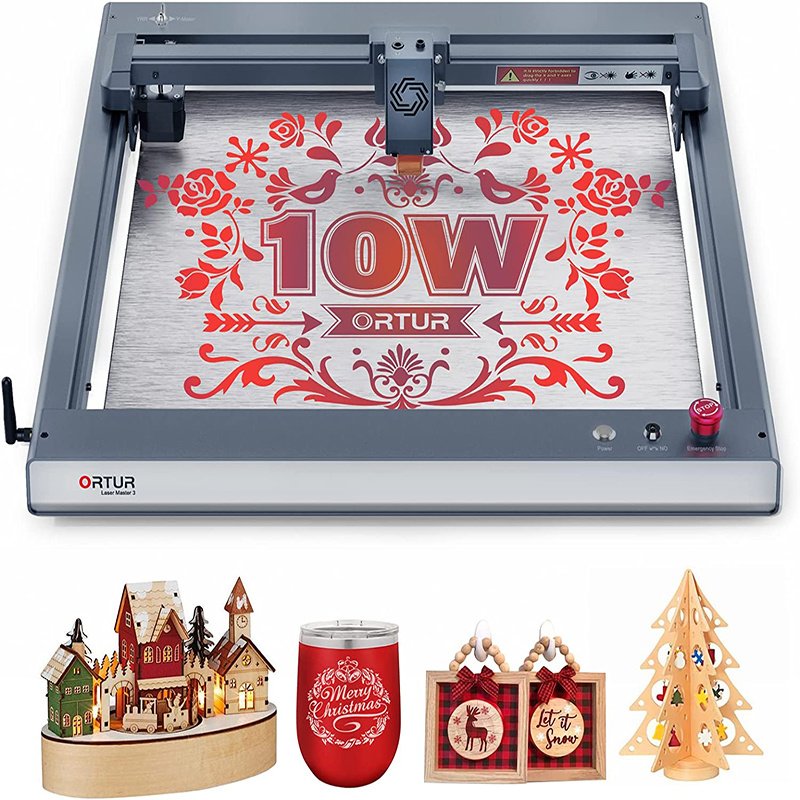

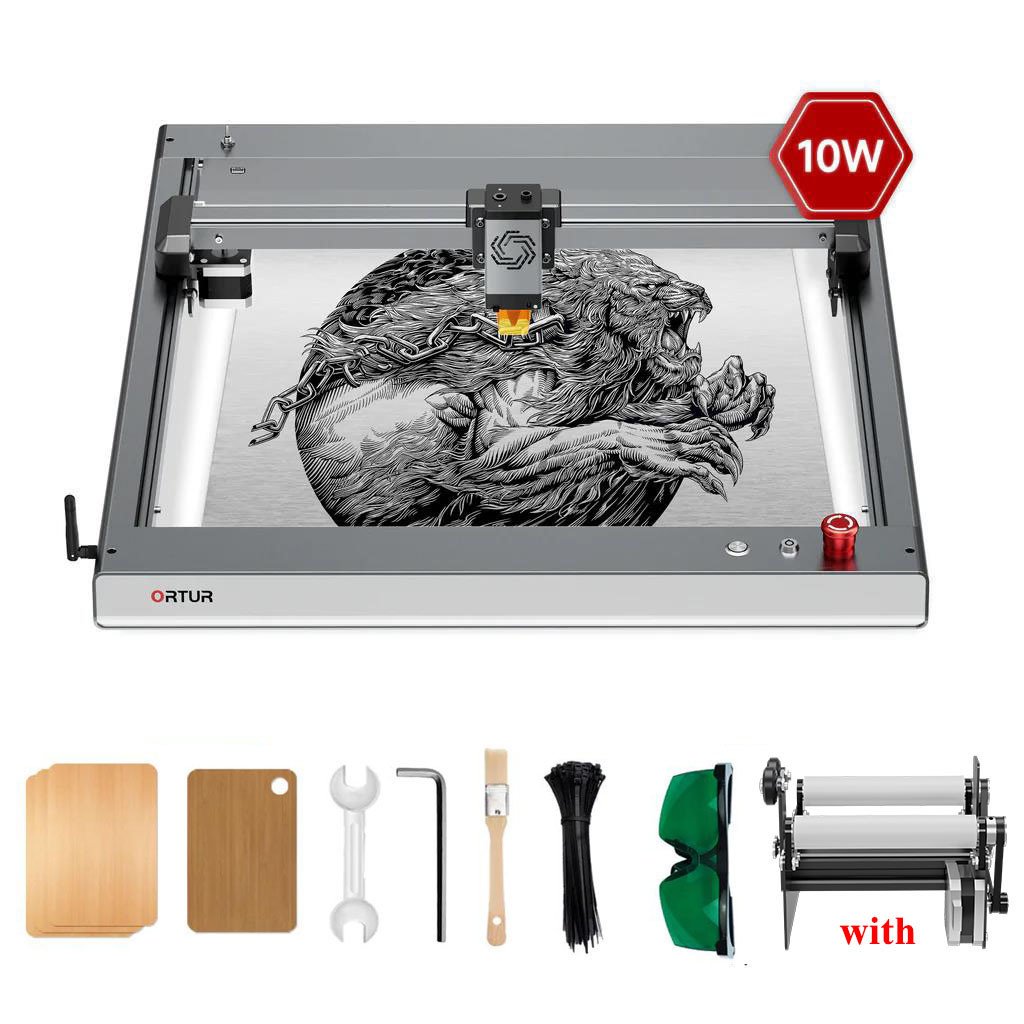

Ortur Laser Master 3 With Rotary Roller 20000mm/Min Off-line Control Laser Engraver and Cutter For Wood Metal Engraving Printer

Details:










































Welcome to Ortur Outlet Store!

Note:
1.Seller's shipping methods are shipping by express company, such as DHL/FedEx/ UPS/ TNT.2.We have overseas warehouses in Russia, United States, Spain, and Czech Republic to ensure that you can receive the goods in the fastest time3.We provide you withlifetime service, one year warranty4.Please input the correct recipient information to ensure that the order can be delivered in time .if you need to modify the information, Please leave a message, We will handle it for you in time5.If you have other questions, you can leave a message or add mywhatsapp: +8619373265951, you can contact me anytime.OLM3 FeaturesModel: Ortur Laser Master 3Material: High precision CNC aluminum alloy frame

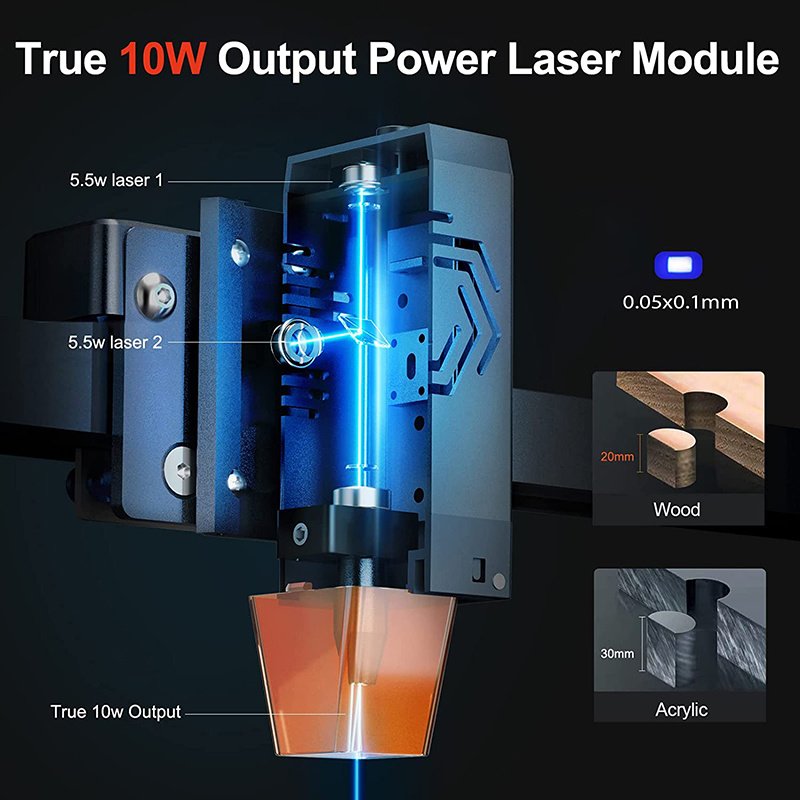

Power Adapter Output: 24V/2AOptical power: 10WElectric power: 40wSpot size: 0.05*0.01mmEngraving area: 400*400mm
Laser Wavelength:: 455±5nmEngraving speed: 0-20000mm/minEngraving Material: plywood,wood,leather,paper,stone,granite,ceramic,tile,glass,metal,stainless steel, acrylic, leaves, rubber, mdf,etcCutting Material: Cardboard, wood,mdf,acylic,non-woven fabric, leather, plywood, pine board, some plastic boards, etc.Cutting thickness: Cutting 20mm wood + 30mm acrylic one-timeMotherboard: OLM3 V2.0Processor: 240MHz main frequencyFirmware type: Support Ortur Laser 2.0 series firmwareDrive type: TMC2209 high-division motor silent drive
Operating Temp: -20℃-50℃Support offline: WIFI, APP hotspot, SD card, USB data cableSupported Operating Systems:① LaserGRBL (free software) supports Windows XP, 7, 8, 10② LightBurn (paid software, lightburnsoftware.com) supports Windows, Mac OS, Linux
Input Format: JPG, JPEG, PNG, BMP, SVG, etcInstallation time: 10-20 minutes (the body only needs 4 screws to be assembled)After-sales service: One year warranty + Lifetime Service


Y-axis Rotary Roller Features


Model: YRR
Material: Aluminum + Acrylic + Plastic
Size:129*184*81mm
Width Adjustment: 7 Gear Positions
Available Laser Engravers: Most kind of Desktop Laser Engravers
Package Contents: 1 x ORTUR Y-axis Engraving Module

7 Safety Protection Function:
1. Equipment maintenance reminder function: remind users to perform certain maintenance operations on the machine


2. Integrated system detection function: After the engraving machine fails, guide and help the user to perform the function detection of the engraving machine


3. Instruction reminder function: The system will notify the working status and potential faults of the OLM3 engraving machine system at the first time


4. Laser light emission detection and protection: check the working state of the laser and the light emission time to avoid fire accidents caused by long-term laser irradiation


5. Position offset detection and protection: If the machine is found to be offset after engraving, the system will immediately stop and alarm to avoid wrong engraving.


6. Machine inclination detection and protection: If it is found that the machine has a change in inclination after engraving, or even overturns, the system will stop immediately


7. Current and voltage detection and protection: If abnormal voltage fluctuation or short-circuit current overload is found, the system will shut down immediately to avoid permanent damage to the engraving machine


Main Function Definition
1.WIFI Aerial
2.Power Input
3.USB Port
4.Main Power Button(Status Light)
5.TF-Card
6.Upgrade Button(for Upgrading Firmware)
7.Reset Button
8.Input and Output Ports
9.Harness Interface
10.Y-axis Motor Interface
11.YRR transfer Switch
12.YRR motor Wire Port


APP Function
1.Graphic Editor
2.remote Control
3.Parameter Adjustment
4.Photo upload
5.Painting
6.Material Presets
7.Material library
8.Barcode generator
9.Firmware upgrade
10.Engraving preview
